Cash/Check Price – Financing Available –
Includes Tractor & Loader.

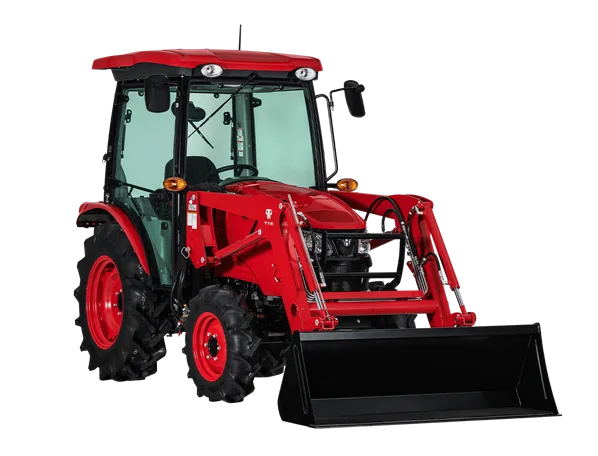

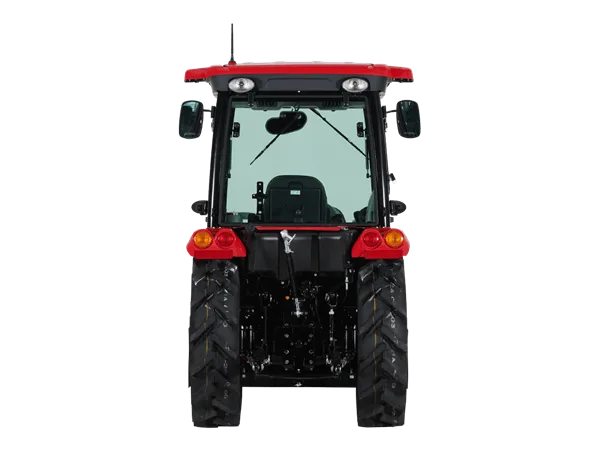

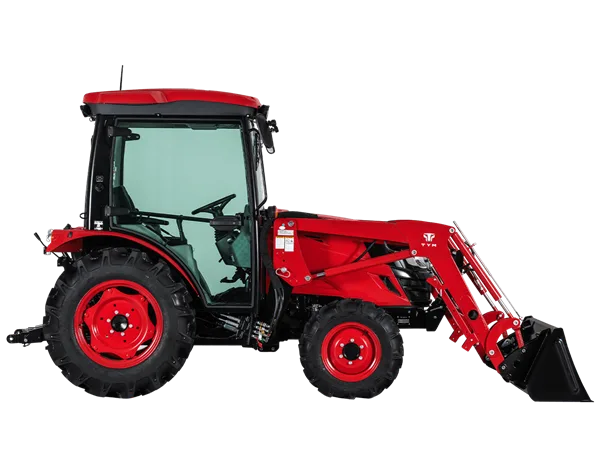

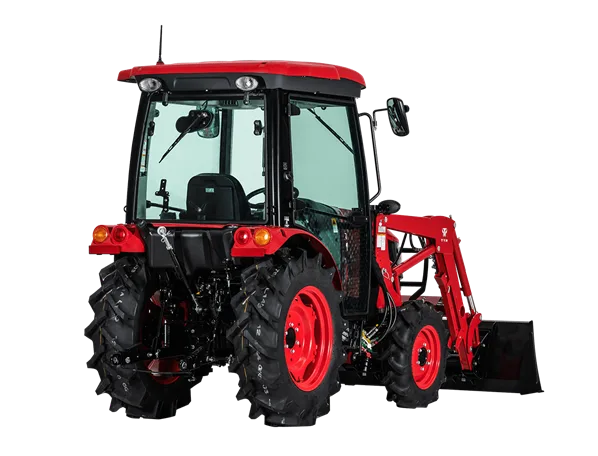

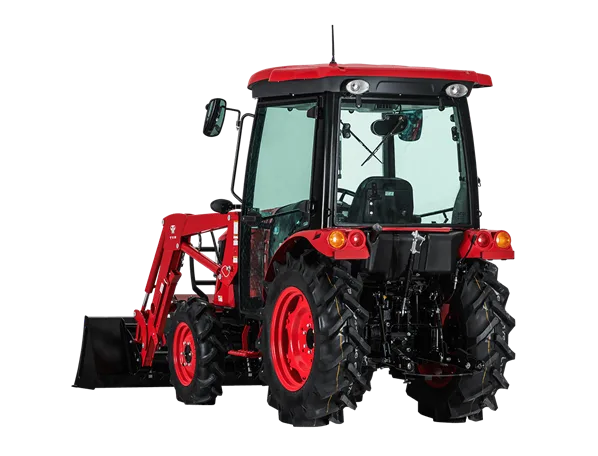

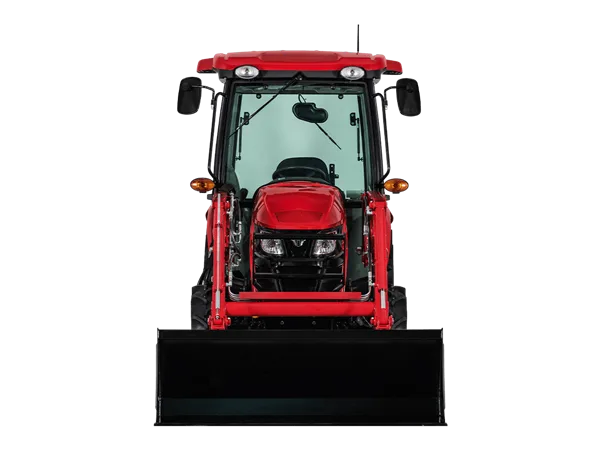

Take on harder tasks in smaller spaces with the T474, proven to be durable and engineered to be efficient. This tractor is a workhorse that is easy to control in greenhouses, orchards, and more.
Meet the premium Series 2 tractor that can do it all. This tractor is the perfect fit for spacious lawns and tricky landscape jobs that require detailed work in tight spaces. The deluxe adjustable flip seat is designed with your comfort in mind. Hydro-Max HST transmission with auto throttle encourages easy maneuverability, while the dual hydraulic pedals ensure smooth operations. The clean EPA Tier 4 engine keeps your emissions in check and removes the need for a DPF filter. The high ground clearance on the tractor makes it an excellent tool for delicate tasks, while the optional front-end loader with an impressive lift capacity ensures that you have all the power you need to tackle the toughest jobs on and off the field. The comfortable suspension seat and ergonomically designed levers and pedals put the driver first, and the optional fully-enclosed easy cabin makes this tractor an ideal choice for all seasons.
Equipped with a powerful, Tier-4 certified 4-cylinder engine, this tractor has an output comparable to utility tractors while maintaining the dimensions of a sub-compact tractor. The durable body and efficient engine come together to perform medium-duty applications efficiently and productively.
In addition to the in-cabin controls, this tractor has an external position lever near the 3-point hitch. This allows operators to adjust an implement position as soon as it is connected, without needing to go to the cabin. This enables quick and convenient switching between implements, enhancing tractor versatility.
Even while the tractor is in motion, a dedicated PTO lever can be used to speed up or slow down implement rpm, while the dial can raise and lower implements at the prescribed speed.
The tractor hood can be opened in one motion, providing easy access to the engine and other systems for daily checks, routine service and maintenance. The side panel can also be removed easily without the need for specialized tools.
The 3-point linkage on the rear has an impressive lift capacity that reaches the end ball joints. The rear PTO control can be used to adjust rpm based on the task, increasing it for more intensive applications like slashing and digging.
The high capacity fuel tank allows drivers to take on jobs for longer periods without stopping for fuel. This is in addition to the engine, which promotes fuel-efficient operation and increases the time before a refuel.
Engine
| Engine manufacturer | TYM A2300N2 |
| Type | Natural Aspiration |
| Gross engine power | 48.3 hp | 36 kW |
| PTO power | 35.9 hp | 26.4 kW |
| Rated engine speed | 2600 rpm |
| No. of cylinders | 4 |
| Displacement | 139.5 cu. in. |
| Air cleaner | Single Dry |
| Alternator | 12V, 70A |
| Fuel system | IDI |
Powertrain
| Transmission type | Mechanical |
| No. of speeds | F12xR12 |
| Max. traveling speed | 14.9 mph |
| Brakes | Wet Disc |
| Steering | Hydrostatic |
| Clutch | Dry Single Plate |
Hydraulic System
| Pump type | Dual Gear Pump |
| Implement flow | 7.66 gpm |
| Steering flow | 4.25 gpm |
| Total flow | 11.91 gpm |
| Category, 3-point hitch | I |
| Loader Lift Capacity | 2152 lb |
| Hitch lift capacity | 2688.8 lb |
| Hitch lift capacity at 24 inches behind link ends | 1508.4 lb |
| Lift control type | Position |
| No. of standard remote valves | 1 |
PTO
| PTO type | Independent |
| PTO control | Electric/Hydro |
| PTO rear | 540 rpm |
Capacities
| Fuel tank | 9.0 gal |
| Coolant | 6.9 qt |
| Crankcase | 6.8 qt |
| Transmission/Hydraulics system | 8.5 gal |
| Front axle | 8.6 qt |
Dimensions & Weights
| Overall length with 3-point hitch | 131 in. |
| Overall width | 54.5 in. |
| Wheelbase | 69.7 in. |
| Height to top of ROPS | 94.5 in. |
| Min. ground clearance | 12.8 in. |
| Min. turn radius with brakes | 106.7 in. |
| Min. turn radius without brakes | 117.5 in. |
| Weight with ROPS | 3289 lb |
| Weight with cab | 3607 lb |
Standard Tires
| R1 Agricultural – Front | Farm Specialist 7-16 NHS TL 6PR |
| R1 Agricultural – Rear | Farm Specialist 11.2-24 NHS TL 6PR |
| R3 Turf – Front | Multi-Trac CS 27×8.50-15 NHS TL 4PR |
| R3 Turf – Rear | Multi-Trac CS 41×14.00-20 NHS TL 4PR |
| R4 Industrial – Front | Trac Chief 10-16.50 NHS TL 6PR |
| R4 Industrial – Rear | Xtra Grip 43×16.00-20 NHS TL 6PR |
